Silicone nanometer
发布时间：2019-09-24 浏览：6382次

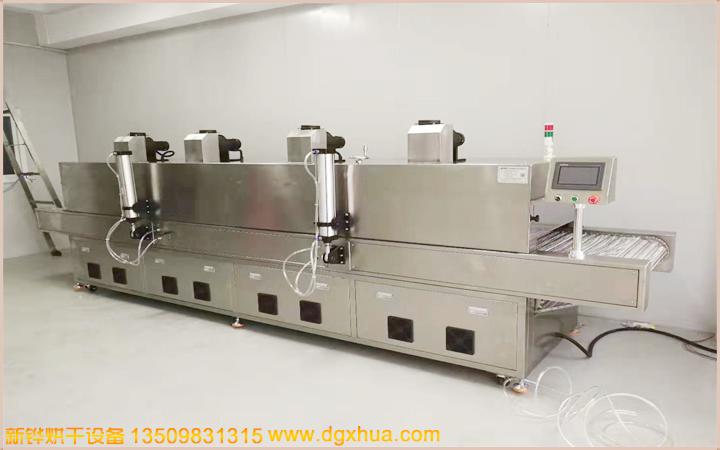

Silicone nano surface modification equipment
Uses and characteristics:
1. This machine is a practical upgrading device. It refers to a silicone modification device that can realize the cleaning and drying of silica gel at one time and avoid the use of hand paint.
2. UV protective layer is formed by UV ultraviolet light irradiation. Since the strap is solvent-free and coated, the finished product has stable process size and performance and is very durable.
3. Due to the UV modification, the surface of the silicone body becomes a UV protective layer, which has the effect of being dust-proof and soft and smooth to the silicone. When the non-heavy external force is destroyed, the UV protective layer will not fall off.
Product parameters
Product Name: Silicone UV Modifier
Irradiation intensity: 4200mj/cm2
Machine power: 20KW
Cooling method: air cooling
Machine size: length 5000* width 1000* height 1350mm
Conveying speed: adjustable from 1~10m/min
UV wavelength: 185-254NM
Conveying width: 600mm
UV lamp: 160W*725mm*112
Feeding height: adjustable from 20-100mm
标准规格型号选配项目产品视频
Silicone nano surface modification equipment customization
The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free; Double over-temperature protection, safer and more reliable; The internal hot air circulation, the baked objects are evenly heated; Fast heating time, stable and accurate temperature; Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect; The temperature of the body shell is low, which has little effect on the indoor environment temperature; A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly. | It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment. Control systems, trays and carts can be selected according to customer needs. Color selection legend
Customers can specify color according to the color card. |
Temperature control optional equipment
| Taiwan Yudian temperature control table |  | Japan Omron intelligent temperature control table |  |
| Japan imported 256-segment programmable Omron temperature controller |  | Japan OMRON Thermostat |  |
| Imported multi-channel color screen paperless recorder |  | Imported multi-channel paper recorder |  |
| Import PARTLOW chart temperature recorder |  | Imported YOKOGAWA 48 channel temperature recorder |  |
| Portable Temperature Recorder Set 6 points |  | IR computer temperature recorder set 6 to 12 |  |
| Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. |
| Power output, according to SSR, SCR, SSPR and other power automatic regulator. |
|
| Weilun 7 inch |  | Proface |  |
| Mitsubishi |  | Siemens |  |
 |
| Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. |
| Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed. |
Wind path cycle legend
 |  |  |  |
| Single side air supply type | Double-sided air supply type | Double-sided air supply explosion-proof | Heat radiation rising type |
 |  |  |  |
| Four-sided radiation type | Thermal radiation type | Hot air radiation type | Hot air radiation type |
Tray, cart matching project
| Tray form |
|
|
|
| Punching plate | Screen tray | Grid disk |
| Activity cart |
|
|
|
| grill | Oven cart + tray | Child cart |
