UV curing machine

Small UV curing machine

发布时间:2019-09-24 浏览:6336次
<
>
产品编号:
Small UV curing machine
适用范围:
Hardware, electronics, capacitors, glass, plastic, UV coating, ink screen printing, glue curing

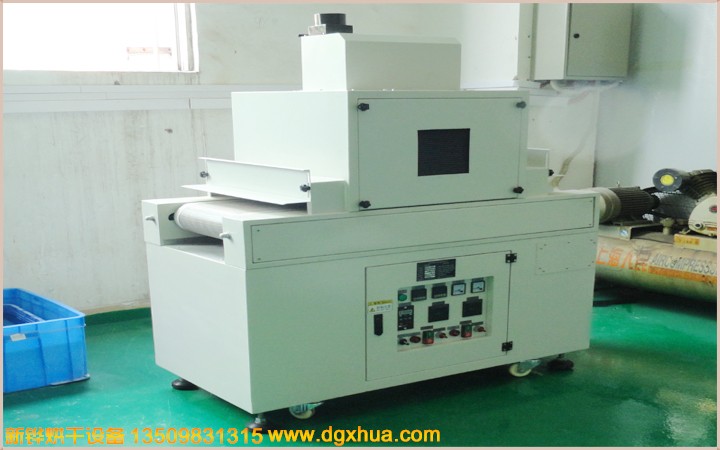

Small UV curing machine

Model XHUV-202 XHUV-302

Outer size L*W*H(mm) 1200*510*1200 2000*800*1260

Lamp power (KW) 2*2KW 2*3KW

Lamp strength (W/m2) 60/80 60/80

Effective illumination width 150/250mm 400mm

Feeding port height (mm) 0-150 conveying height: 850±50mm

Conveying speed 3~12m/min

Conveyor belt Teflon mesh belt, stainless steel mesh belt,

Conveying width 180mm 470mm

Box material SS41# steel plate after anti-rust treatment, high-temperature powder baking powder

Cooling method forced air cooling

Protection device leakage switch, phase sequence protection, motor over current protection, control line fuse

Electricity AC380V 5KVA AC380V 7KVA

Other options Cold mirror-CM, cold plate-CF, stepless variable frequency power supply


标准规格型号选配项目产品视频

  Small UV curing machine specifications can be customized
