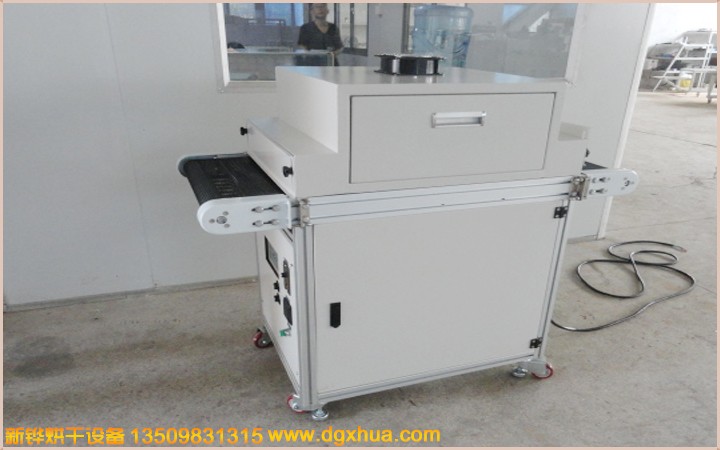

LED UV curing oven
发布时间:2019-09-24 浏览:6348次
适用范围:
Communication equipment, optical prisms, crystal bonding, optical lens, fiber optic, micro motor, PCB dispensing curing, PCB, semiconductor exposure, screen printing ink curing
LED UV curing oven
Model XHUV-LED301 XHUV-LED401
Outer size L*W*H(mm) 1200*580*1200
LED wavelength (nm) 365~405
Lamp Strength (W/m2) 12 12
Effective illumination width 300*20(mm) 400*20(mm)
Conveying speed 1~12(m/min)
Conveyor belt Teflon belt
Conveying width 500
Box material Outer box: SS41# steel plate after anti-rust treatment, high-temperature powder baking powder
Cooling method
Protection device leakage switch, water temperature over temperature protection, control line fuse
Electricity 220v/1KVA 220v/1.2KVA
标准规格型号选配项目产品视频
LED UV curing machine can be customized

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free; Double over-temperature protection, safer and more reliable; The internal hot air circulation, the baked objects are evenly heated; Fast heating time, stable and accurate temperature; Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect; The temperature of the body shell is low, which has little effect on the indoor environment temperature; A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly. | It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment. Control systems, trays and carts can be selected according to customer needs. Color selection legend
Customers can specify color according to the color card. |
Temperature control optional equipment
Taiwan Yudian temperature control table |  | Japan Omron intelligent temperature control table |  |
Japan imported 256-segment programmable Omron temperature controller |  | Japan OMRON Thermostat |  |
Imported multi-channel color screen paperless recorder |  | Imported multi-channel paper recorder |  |
Import PARTLOW chart temperature recorder |  | Imported YOKOGAWA 48 channel temperature recorder |  |
Portable Temperature Recorder Set 6 points |  | IR computer temperature recorder set 6 to 12 |  |
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. |
Power output, according to SSR, SCR, SSPR and other power automatic regulator. |
|
Weilun 7 inch |  | Proface |  |
Mitsubishi |  | Siemens |  |
 |
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. |
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed. |
Wind path cycle legend
 |  |  |  |
Single side air supply type | Double-sided air supply type | Double-sided air supply explosion-proof | Heat radiation rising type |
 |  |  |  |
Four-sided radiation type | Thermal radiation type | Hot air radiation type | Hot air radiation type |
Tray, cart matching project
Tray form |
|
|
|
Punching plate | Screen tray | Grid disk |
Activity cart |
|
|
|
grill | Oven cart + tray | Child cart |
