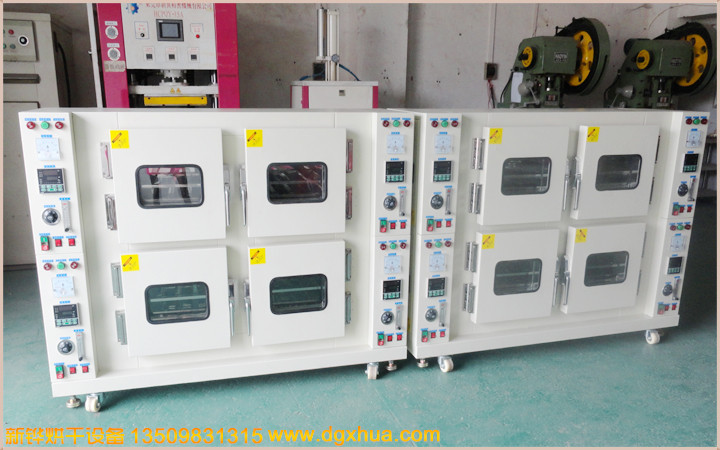

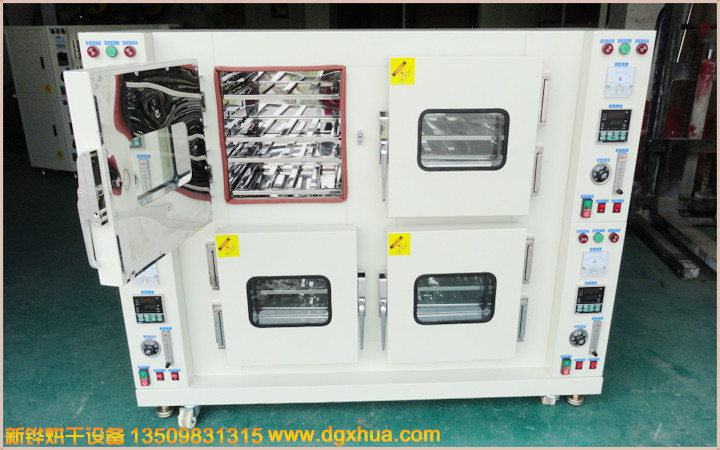

nitrogen-filled oven
Model XHMOQ-2 XHMOQ-2D
Inner size W*D*H(mm) 610*610*610 710*610*560 (two boxes)
Outer size W*D*H(mm) 1280*980*1100 1460*1085*2100
Temperature range RT-200°C
Uniformity ±1.5% (no load test)
Heating time 15min 20min
Intake air volume N2 MAX: 25L/min
Exhaust port
Box material Inner box: SUS304# mirror stainless steel; Outer box: SS41# steel plate after anti-rust treatment, high-temperature powder baking powder
Air supply mode
Heater SUS304# dust-free electric heater
Protection devices All electrical accessories such as leakage switch, phase sequence protection, over temperature protection, motor over current protection, control line fuse, etc. are all in accordance with national standards.
Electricity AC380V 5KVA AC380V 10KVA

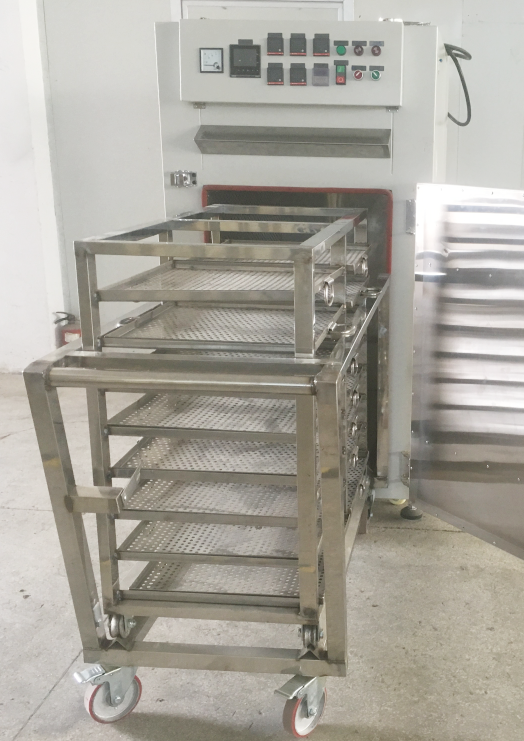

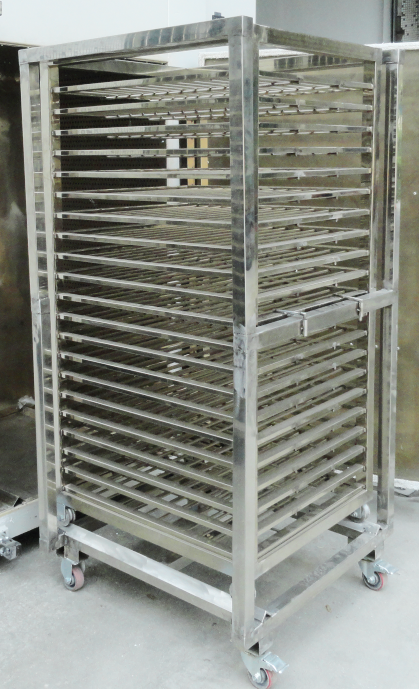

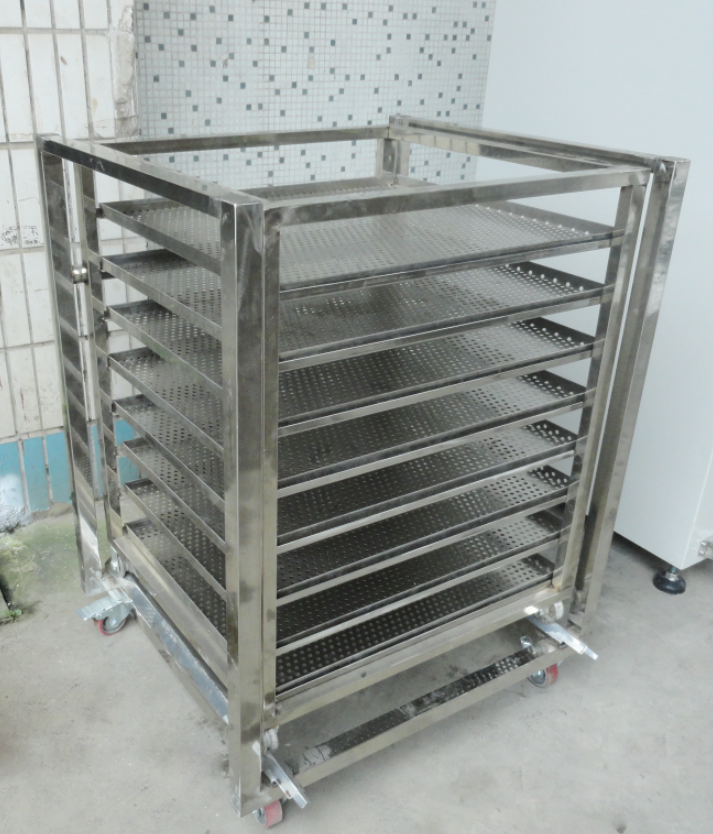

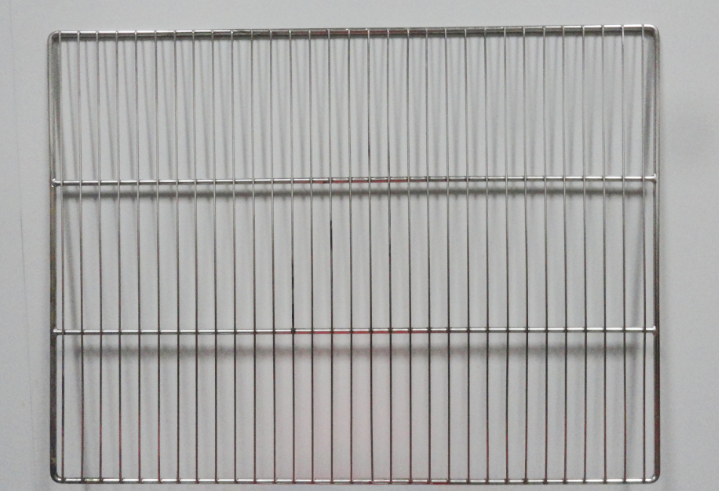

Standard equipment Flowmeter, electromagnetic door buckle, test round hole, adjustable shelf, three-color indicator
Product Features
1. Adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy.
2. Adopt automatic constant temperature, automatic timing, automatic shutdown after the arrival of baking time and alarm
3. The stainless steel electric heating tube saves electricity and is dust-free, so that the product can achieve the effect of rapid drying.
4. Design the oven air duct for product requirements to ensure the best temperature uniformity.
Other options Programmable temperature controller, six-point temperature recorder, auxiliary cooling device
Nitrogen-filled oven
