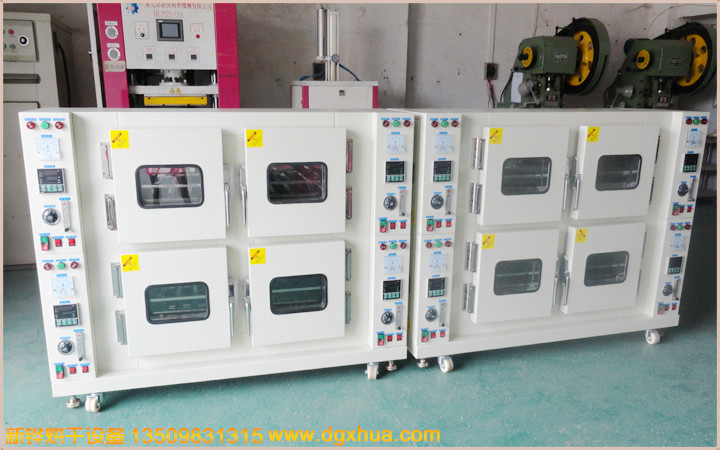

Oxidized oven

Non-oxidizing oven configuration for reference

Model: XHMOQ- 4DL

Power supply: AC380V 3φ 50HZ 17KVA

Machine size: single box size: W400mm × D500mm × H450mm (four boxes total)

Overall outer dimensions: W1750mm*D950mm*H1100mm (reference size)

Temperature Control System:

Temperature range: room temperature ~ 250 ° C, commonly used 150 ° C, normal temperature rise to 150 ° C for about 20 minutes;

Temperature controller: temperature controller, digital setting, LED display, PID automatic calculation, with SSR output control, K-type thermocouple detection temperature;

Structural design

Inner box material: inner box is made of SUS304# mirror stainless steel plate, surrounded by argon welding and sealing processing (anti-pollution); outer box material: SS41# steel plate is anti-rust after electrostatic high-temperature powder coating, wrinkle grayish white;

Insulation material: high-grade insulation cotton, insulation thickness 100mm plus air insulation;

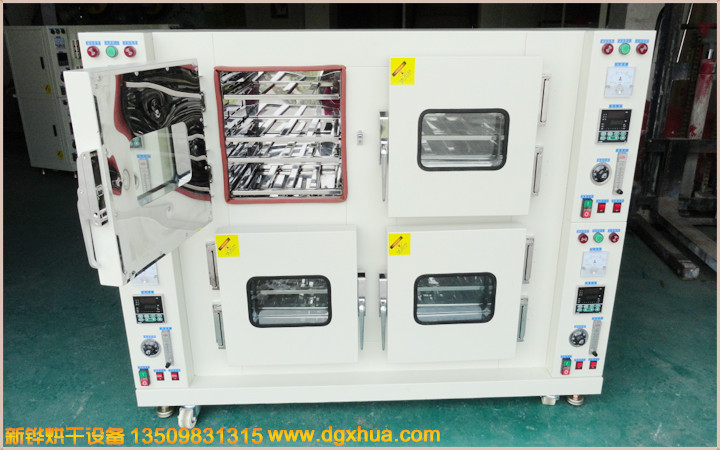

Machine structure: four sets of independent control, four sets of heating system, four sets of circulating air system combination; control box is located on the left and right sides of the machine; 180 degrees single open door, convenient for maintenance and cleaning;

The door buckle adopts a long-handle type door lock, which is strong and easy to open and easy to close, and is durable and durable;

Observation window: each glass door is equipped with a glass observation window;

Air supply system

The motor is transported by the side, the hot air is blown from right to left to the product, the jet flow design, the circulating air supply, and the uniformity is good;

A long-axis oven-specific motor 1 set and a powerful multi-wing galvanized wind wheel;

Nitrogen filling method: the electric 4-way magnetic valve is used to control the nitrogen gas, the inlet diameter is Ø8mm, and the externally adjustable nitrogen flow meter is installed, which is convenient to operate;

Exhaust mode: natural exhaust, venting port diameter Ø8mm, easy to operate;
