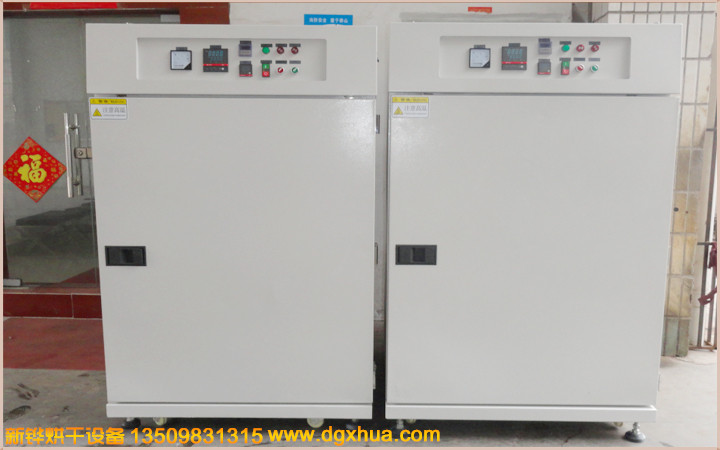

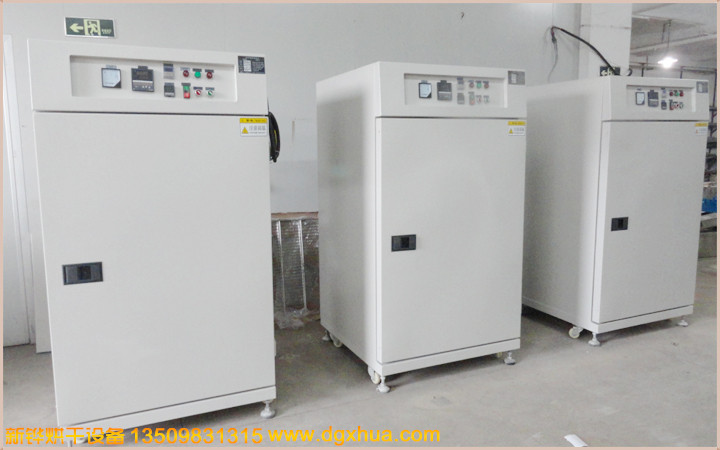

Clean oven

Clean oven

Model XHMOL-2 XHMOL-2D XHMOL-3

Inner size W*D*H(mm) 600*500*600 600*600*600 (two boxes) 600*500*900

Outer size W*D*H(mm) 1060*1240*1550 1450*1240*1550 1060*1240*1850

Temperature range RT-200°C (300°C)

Uniformity ±2% (no load test)

Heating time 15min 20min 25min

Intake air volume N2 or Clean Air MAX: 25L/min

Exhaust port

Cleanliness Class100#, FED-STD-209E cleanliness standard

Box material Inner box: SUS304# mirror stainless steel; Outer box: SS41# steel plate after anti-rust treatment, high-temperature powder baking powder

Air supply mode horizontal/vertical air supply

Protection device Leakage switch, phase sequence protection, over temperature protection, motor over current protection, control line fuse

Electricity AC380V 5KVA AC380V 12KVA AC380V 9KVA

Product Features

1. Adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy.

2. Adopt automatic constant temperature, automatic timing, automatic shutdown after the arrival of baking time and alarm

3. The stainless steel electric heating tube saves electricity and is dust-free, so that the product can achieve the effect of rapid drying.

4. Design the oven air duct for product requirements to ensure the best temperature uniformity.

5. Install high-temperature and high-efficiency filter in the box, the highest cleanliness can reach 100, and the differential pressure gauge monitors the working condition of the internal filter of the oven.

Standard equipment High efficiency filter, differential pressure meter, flow meter
