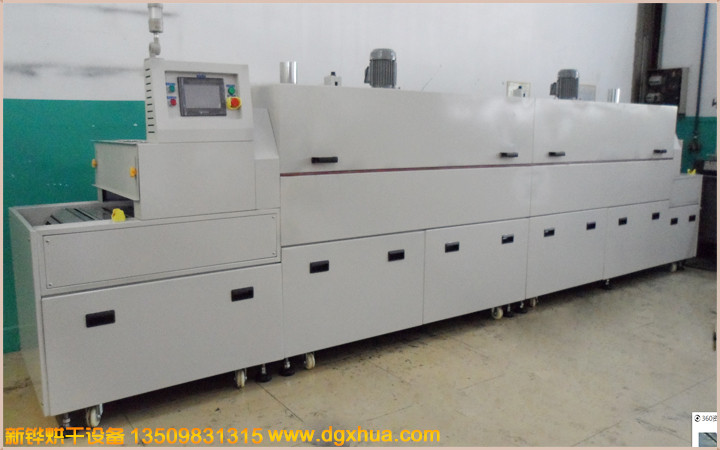

Rotor filling tunnel furnace
The following parameters are configured for reference.
Power source: AC380V 3Φ 50HZ 20KW
Machine size: outer size: W800mm × L5000mm × H1200mm
Feeding section length: 500mm; heating section length: 3500mm (divided into 2 sections of temperature control, each section: 1750mm / 1 supply air motor); cooling section 500mm (divided into 2 groups of 6-inch adjustable angle fan sets); Receiving section: 500mm.
The width of the conveyor chain is 530mm, the height of the conveyor chain is 750+ 50mm, and the height of the inlet/outlet is adjustable by 150MM.
Temperature Control System
Temperature range: room temperature - XAX220 ° C; commonly used 80 ° C; normal temperature rise to 80 ° C takes 12 minutes.
Control mode: Adopt (Mitsubishi) temperature module with (Hua Ting) SCR to control temperature, precise temperature control, small temperature deviation; operation interface adopts (Wellen) 7-inch color screen with (Mitsubishi) PLC setting and operation.
5. Machine action: Overheating stops heating and alarms (sound and light alarm).
6. Structural design
Inner box material: SUS201#T1.2mm stainless steel plate, surrounded by argon welding and sealing processing (anti-pollution). Outer box material: SS41#T1.5mm steel plate is coated with anti-rust static high-temperature powder, wrinkle white.
Insulation material: high temperature resistant aluminum silicate cotton + air insulation, insulation thickness 100mm,
The use of high temperature resistant silicone is tight, beautiful and pollution free.
Machine structure: The heating section is designed with manual struts to facilitate maintenance, cleaning and maintenance;
7. Air supply system
The motor is circulated from the top, and the hot air is blown from top to bottom to the product, jet design, circulation
Air supply, good uniformity.
The long-axis oven-specific motor 2 sets (Yongyuan) and the powerful multi-wing type wind wheel are used.
8. Heater:
Taiwan (Taiwan) Zhongbo infrared electric heating tube, saving electricity, and has a service life of 2 years.
Heating power: 8KW / per segment.

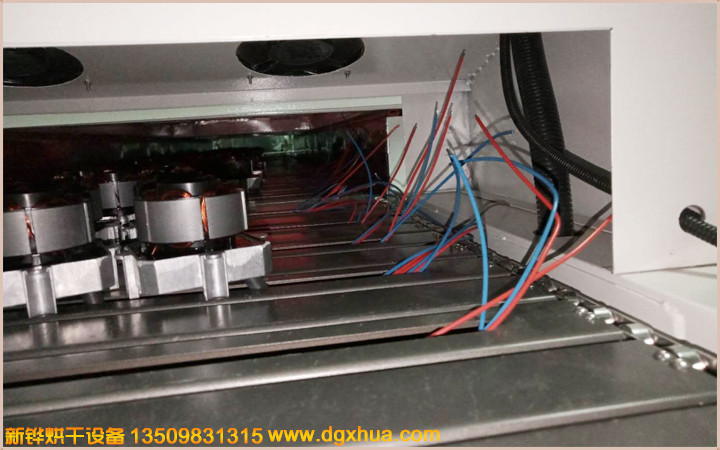

9. Conveying system: transmission motor + reducer + sprocket + chain + stainless steel punching chain plate (see the bottom), conveying mode (control box discharge section) from left to right, continuous conveying, speed 0~0.3M/ Min, (commonly used 0-0.1M/MIN), the touch screen sets the conveying frequency and displays the conveying speed.
Rotor filling tunnel furnace can be customized according to process requirements
