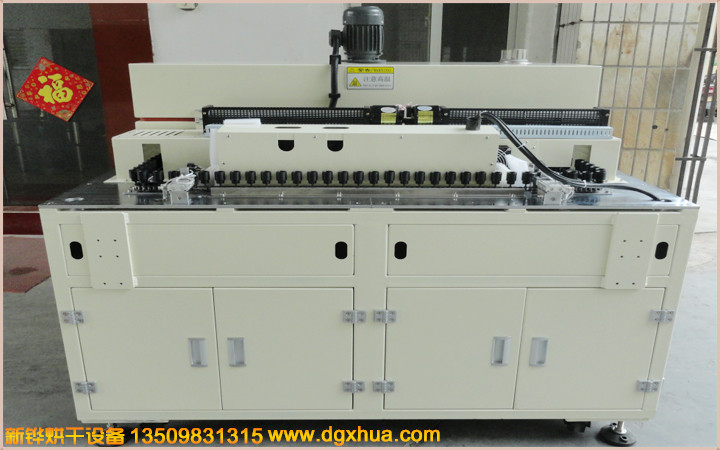

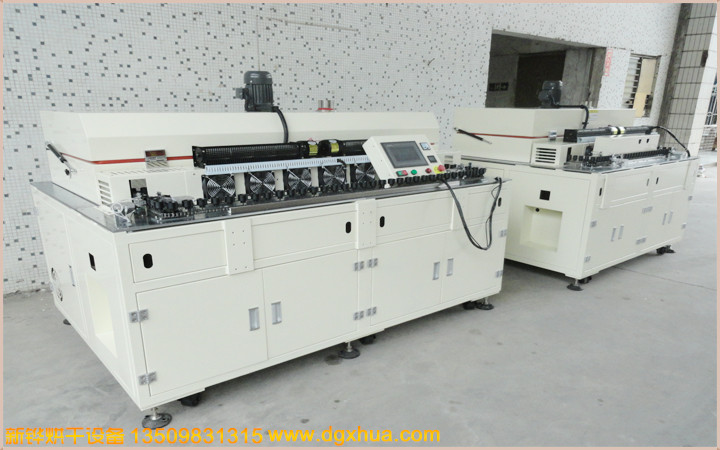

Motor rotor furnace

Motor rotor furnace parameter configuration for reference

Parameter Description:

Power system: 380V/11KW/50HZ

Outer box material: SS41#1.5mm bending welding processing, grinding chamfer without burr

Insulation interlayer: high density white aluminum silicate cotton, insulation thickness is 100MM

Inner box material: SUS201#1.2mm stainless steel close welding, product import and export height 250MM

Inspection method: The furnace cover is opened for pneumatic spring and manual strut protection, and the test hole is installed opposite to the furnace cover.

Frame material: bracket square, built-in electric box, four-sided movable door panel, 10 PCT platform surface

In and out material positioning: multiple sets of positioning, rotor upper and lower materials, photoelectric detection chain positioning of incoming and outgoing materials

Cooling method: left and right sides, a row of high-speed axial fan blows on the front, exhaust vents at the top of the cooling hood, and the cooling time is 5 minutes.

Wind mode: top one-way horizontal wind, long-axis motor with multi-wing wind wheel

Temperature control system: Kunlun Tongtai touch screen + PLC + SCR, man-machine interface operation panel, when the feed is faulty, can not feed, output stop heating signal to stop heating

Temperature range: adjustable from room temperature to 150 ° C, it takes about 10 minutes for room temperature to rise to 150 degrees

Heating method: medium wave infrared electric heating tube heating air circulation, single-stage furnace cover

Heating power: 9KW Chain travel with a heating time of 15 minutes

Transmission motor: Stepper motor conveying beat 3.5S out of a product.

Conveyor chain: extended pin carbon steel chain

Safety device: over temperature protection, phase protector, thermal overload protection, other electrical Schneider, Chint leakage switch

Machine color: sanding chamfer without burr, high temperature spray after rust prevention (customer specified color)
