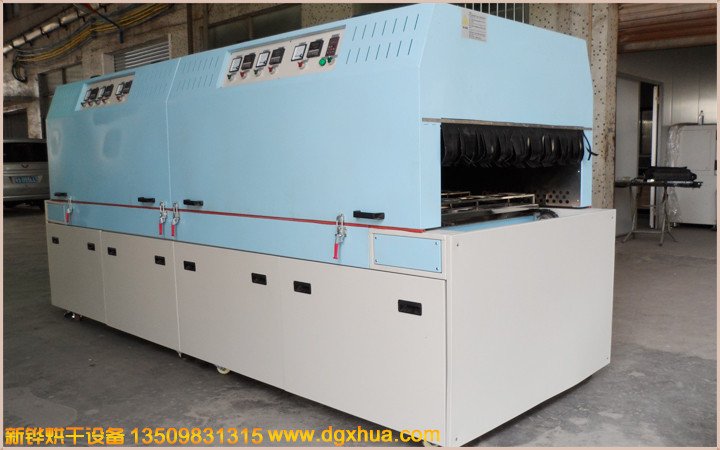

Football tunnel furnace specification
Outer box material: SS41#1.5mm bending welding processing
Insulation sandwich: 100K high density rock wool, insulation thickness is 100MM
Inner box material: SUS201#1.0mm stainless steel close welding
Rack material: bracket 40*40*1.5mmmm square pass combination,
Inlet and outlet door: The product import and export height is 400MM, and the air curtain prevents the hot air from overflowing.
Wind mode: one-way horizontal wind, 45W long-axis motor with 5-inch multi-wing wind wheel
Temperature control system: Each section of the furnace is divided into 3 temperature control tables to control the temperature, RKC (PID control) temperature control table is equipped with Shengang solid state relay heating, and K type thermocouple detects temperature.
Temperature range: uniformity ± 5 ° C, room temperature - 80 ° C adjustable, room temperature rise to 60 degrees takes about 10 minutes
Heating method: heating in upper and lower layers, medium and rear infrared heat pipes with reflectors, single-stage furnace cover heating power: 14KW
Transmission: 1HP Shengjie motor, 60 type 1:60 tooth box, easy energy frequency converter speed (0-3 meters adjustable)

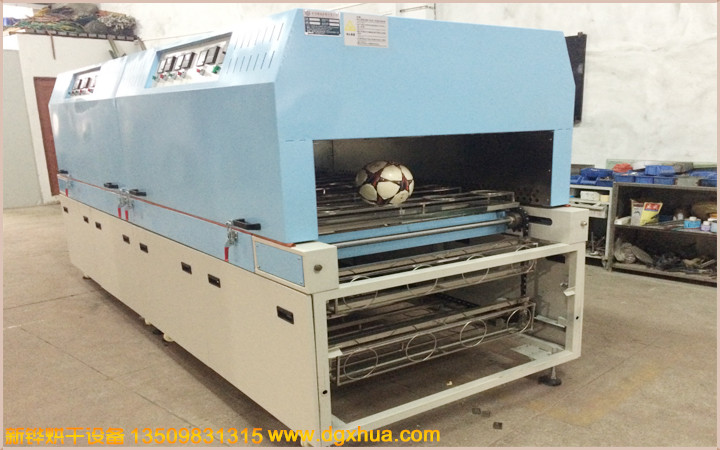

Conveying mode: 5 points carbon steel chain, 25*25*2MM stainless steel square steel plus stainless steel yuan steel custom, each ball box put 4, 75 ball frames.
Safety device: over temperature protection device, power phase loss protector, thermal overload protection, other electrical appliances
Machine color: sanding chamfer without burr, anti-rust, gray-white high temperature spray
Power system: TNS/380V+N/30KW/50HZ (segmented control)
Football tunnel furnace customized according to customer specifications
