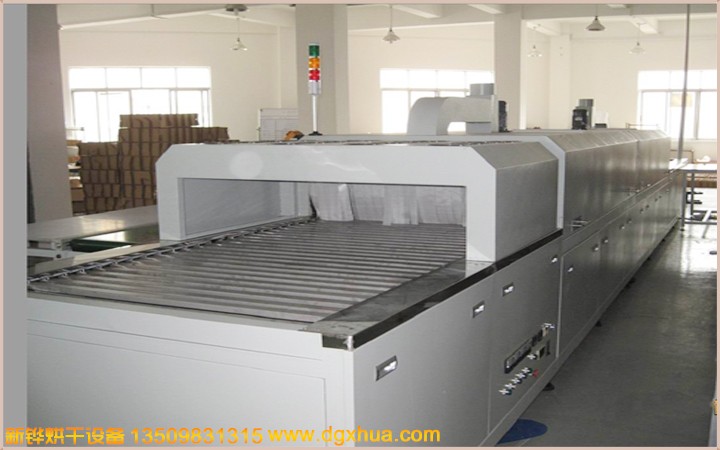

Hardware tunnel drying oven

发布时间：2019-09-24　浏览：3158次

产品编号：

适用范围：

Magnetic material, ceramic, PTC, NTC, pressure sensitive pressure electrode, motor, spring, screw, bearing, chemical powder, mold, metal, glass hot bending, ceramic capacitor, etc. baking, tempering, preheating, shaping, heat treatment machining

Hardware tunnel drying furnace specification reference

Model XHSOH-30-5R XHSOH-80-8R XHSOH-50-8R

Inner dimension L*W*H(mm) 6000*380*60 10000*600*100 10000*580*80

Outer size L*W*H(mm) 7800*1300*1500 11500*1500*1550 12000*1800*1550

Feed section length (mm) 600 600 800

Heating section length (mm) 5*1200 8*1200 8*1200

Cooling section length (mm) 600 700 800

Discharge section length (mm) 600 600 800

Conveying width (mm) 300 600 2*500

Delivery method SUS316S stainless steel mesh belt

Temperature range RT-950°C Uniformity ±2.5% (no-load test)

Heating time 40min 50min 60min

Box material Inner box: SUS316S# stainless steel; outer box: SS41# steel plate after anti-rust treatment, high-temperature powder baking powder

Heating method Alloy heater / silicon carbon rod / resistance rod

Insulation material Aluminum silicate fiber, aluminum silicate board

Protection device Leakage switch, phase sequence protection, over temperature protection, motor over current protection, control line fuse

Electricity (KVA) AC380V 40KVA AC380V 60KVA AC380V 80KVA

Product Features 1. Multi-point intelligent temperature controller to control temperature, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy.

2. Insulation structure: It adopts full fiber lining to save energy.

3. Heating method: straight rod heating can not be blue, easy to repair and replace.

标准规格型号选配项目产品视频

Hardware tunnel drying furnace specifications can be customized

Unique performance

Customer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend

Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control table		Japan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controller		Japan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorder		Imported multi-channel paper recorder
Import PARTLOW chart temperature recorder		Imported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 points		IR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inch		Proface
Mitsubishi		Siemens
Industrial computer Ethernet remote monitoring

Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend


Single side air supply type	Double-sided air supply type	Double-sided air supply explosion-proof	Heat radiation rising type

Four-sided radiation type	Thermal radiation type	Hot air radiation type	Hot air radiation type
