UV curing machine

Ultraviolet UV irradiation machine

发布时间:2019-09-23 浏览:5912次
<
>
产品编号:
Ultraviolet UV irradiation machine
适用范围:
Hardware, electronics, capacitors, glass, plastic, UV ink screen printing

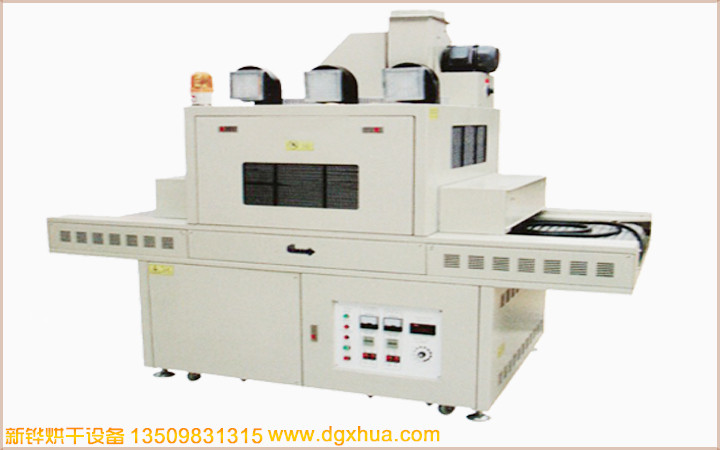

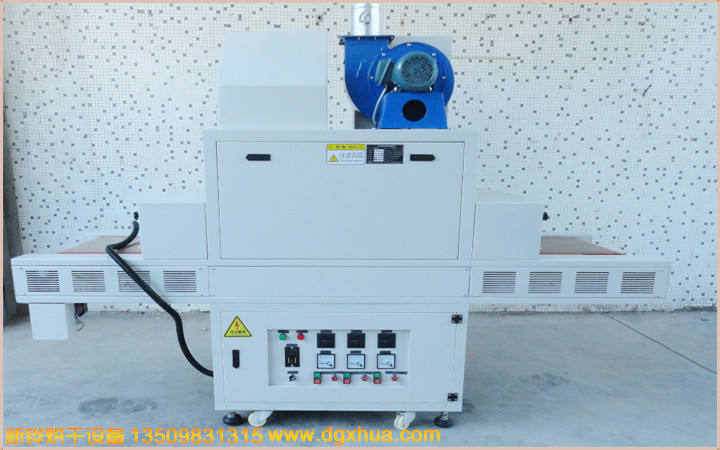

Ultraviolet UV irradiation machine

Model XHUV-362 XHUV-502

Outer size L*W*H(mm) 2000*800*1260 2440*1020*2080

Lamp power (KW) 2*3.6KW 2*5.6KW

Lamp strength (W/m2) 80/120 80/120

Effective illumination width 300 600

Feeding port height (mm) 0-100 conveying height: 850±50mm

Conveying speed 3~12m/min

Conveyor belt Teflon mesh belt, stainless steel mesh belt,

Conveying width 470mm 690mm

Box material SS41# steel plate after anti-rust treatment, high-temperature powder baking powder

Cooling method forced air cooling

Protection device leakage switch, phase sequence protection, motor over current protection, control line fuse

Electricity AC380V 9KVA AC380V 12KVA

Other options Cold mirror-CM, cold plate-CF, metal halide lamp, stepless inverter power supply


标准规格型号选配项目产品视频

  UV UV irradiation machine can be customized
