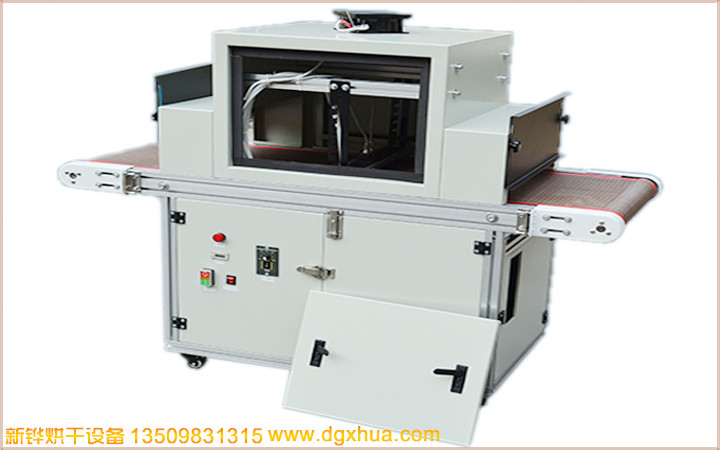

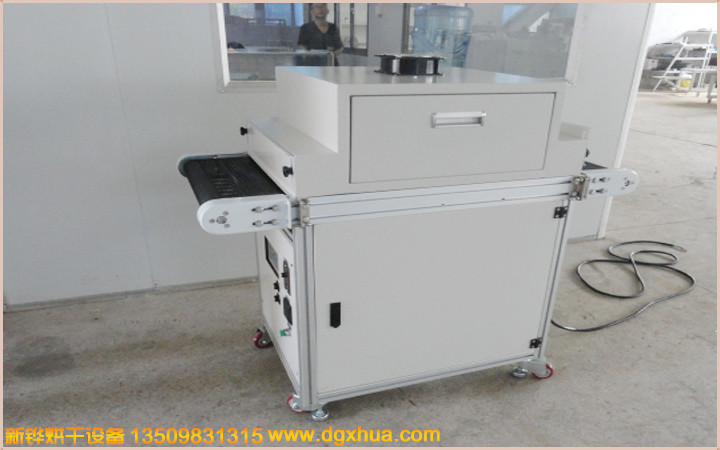

LED UV curing machine
发布时间:2019-09-23 浏览:5705次
产品编号:
LED UV curing machine
适用范围:
Communication equipment, optical prisms, crystal bonding, optical lens, fiber optic, micro motor, PCB dispensing curing, PCB, semiconductor exposure, screen printing ink curing
LED UV curing machine
Model XHUV-LED402 XHUV-LED502
Outer size L*W*H(mm) 1200*580*1200
LED wavelength (nm) 365~405
Lamp Strength (W/m2) 12 12
Effective illumination width 400*25(mm) 500*25(mm)
Conveying speed 1~12(m/min)
Conveyor belt Teflon belt
Conveying width 500
Box material Outer box: SS41# steel plate after anti-rust treatment, high-temperature powder baking powder
Cooling method
Protection device leakage switch, water temperature over temperature protection, control line fuse
Electricity (KVA) 220v/1.6KW 220v/1.8KW
标准规格型号选配项目产品视频
LED UV curing machine is customized according to customer requirements

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free; Double over-temperature protection, safer and more reliable; The internal hot air circulation, the baked objects are evenly heated; Fast heating time, stable and accurate temperature; Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect; The temperature of the body shell is low, which has little effect on the indoor environment temperature; A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly. | It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment. Control systems, trays and carts can be selected according to customer needs. Color selection legend
Customers can specify color according to the color card. |
Temperature control optional equipment
Taiwan Yudian temperature control table |  | Japan Omron intelligent temperature control table |  |
Japan imported 256-segment programmable Omron temperature controller |  | Japan OMRON Thermostat |  |
Imported multi-channel color screen paperless recorder |  | Imported multi-channel paper recorder |  |
Import PARTLOW chart temperature recorder |  | Imported YOKOGAWA 48 channel temperature recorder |  |
Portable Temperature Recorder Set 6 points |  | IR computer temperature recorder set 6 to 12 |  |
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. |
Power output, according to SSR, SCR, SSPR and other power automatic regulator. |
|
Weilun 7 inch |  | Proface |  |
Mitsubishi |  | Siemens |  |
 |
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. |
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed. |
Wind path cycle legend
 |  |  |  |
Single side air supply type | Double-sided air supply type | Double-sided air supply explosion-proof | Heat radiation rising type |
 |  |  |  |
Four-sided radiation type | Thermal radiation type | Hot air radiation type | Hot air radiation type |
Tray, cart matching project
Tray form |
|
|
|
Punching plate | Screen tray | Grid disk |
Activity cart |
|
|
|
grill | Oven cart + tray | Child cart |
