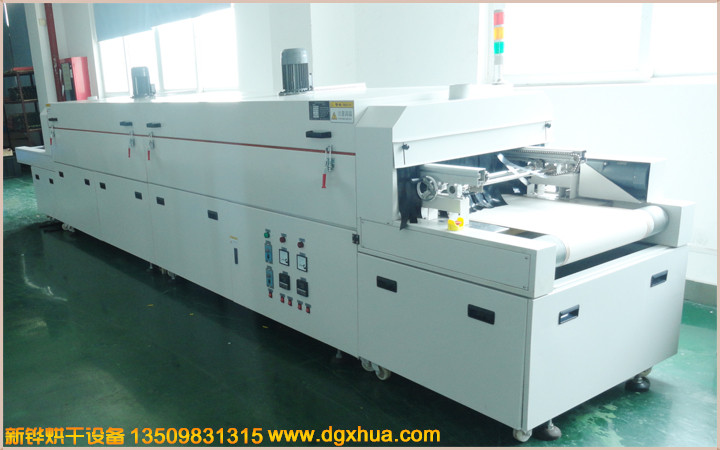

PCB plug-in tunnel furnace

发布时间：2019-09-24　浏览：2406次

产品编号：

适用范围：

Plastics (semiconductor, LCD, LED), PCB, electrolytic capacitors and other glue packaging, motor, hardware, plastics, silicone rubber, printing, pharmaceutical, footwear and other industries baking, drying, aging purposes

PCB plug-in tunnel furnace

Model XHSO-80-3R XHSO-100-4R XHSO-120-5R

Inner dimension L*W*H(mm) 6000*850*150 8000*1050*150 12500*1250*150

Outer size L*W*H(mm) 8000*1050*1650 10000*1250*1650 15000*1450*1650

Feed port height (mm) 0-200 conveying height (mm) 850±50

Feed section length (mm) 800 800 1000

Heating section length (mm) 3*2000 4*2000 5*2500

Cooling section length (mm) 400 400 500

Discharge section length (mm) 800 800 1000

Conveying width (mm) 800 1000 1200

Conveying method PVC/silicone belt, Teflon mesh belt/cloth belt, stainless steel mesh belt/net chain/chain plate

Temperature range RT-200°C (250°C) Uniformity ±2.5% (no-load test)

Heating time 30min 35min 35min

Box material Inner box: SUS304#T1.5mm mirror stainless steel Outer box: SS41#T1.5mm steel plate after anti-rust treatment, high-temperature baking powder

Air supply mode Single side horizontal air supply / vertical air supply

Heating method SUS304# electric heater + hot air circulation

Protection device Leakage switch, phase sequence protection, over temperature protection, motor over current protection, control line fuse

Electricity AC380V 28KVA AC380V 46KVA AC380V 69KVA

Product Features 1. Adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy.

2. Use two-stage four-way uniform for distributed control heating (when the temperature is constant, one of the electric heating pipes can be turned off arbitrarily, and the heating power is reduced to enter the power-saving mode)

3. The stainless steel electric heating tube has a long service life and no dust, so that the product achieves the effect of rapid drying.

标准规格型号选配项目产品视频

PCB plug-in tunnel furnace specifications can be customized non-standard custom consultation

Unique performance

Customer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend

Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control table		Japan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controller		Japan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorder		Imported multi-channel paper recorder
Import PARTLOW chart temperature recorder		Imported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 points		IR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inch		Proface
Mitsubishi		Siemens
Industrial computer Ethernet remote monitoring

Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend


Single side air supply type	Double-sided air supply type	Double-sided air supply explosion-proof	Heat radiation rising type

Four-sided radiation type	Thermal radiation type	Hot air radiation type	Hot air radiation type
