Single door silicone oven specifications
Model XHMO-18-6R XHMO-36-6R
Inner dimension W*D*H(mm) 830*1200*1500 1650*1200*1500
Outer size W*D*H(mm) 1490*1460*2180 2280*1460*2300
Temperature range RT-250°C
Uniformity ±1.5% (no load test)
Heating time 30min 35min
Intake mode MAX: 25L/min
Exhaust air mode
Box material
Inner box: SUS304# mirror stainless steel;
Outer box: SS41# steel plate after anti-rust treatment, high-temperature powder baking powder
Air supply mode
Heater SUS304# dust-free electric heater
Protection devices All electrical accessories such as leakage switch, phase sequence protection, over temperature protection, motor over current protection, control line fuse, etc. are all in accordance with national standards.
Electricity (KVA) 18 36
Product Features
1. Temperature control mode: adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy, 6 points display monitoring temperature.
2. Temperature uniformity: The temperature has been monitored by 18 meters in the furnace through the temperature recorder. The temperature difference between each point is within the set temperature of 200±3°C.
3. Exhaust air mode: variable frequency powerful air exhaust device with air inlet mode, maximum exhaust air speed: 8-12 m / S adjustable, effectively solve the dust generated by the silicone product during the baking process.
4. Cleaning method: the inside of the furnace + the top inner plate adopts the drawer type guide groove structure and is easy to clean without screws.
5. Sealing performance: The inner liner is fully sealed and fully welded. The special sealing strip is not fixed by pulling nails, and the replacement is convenient.
Other options PLC + touch screen control, temperature recorder,

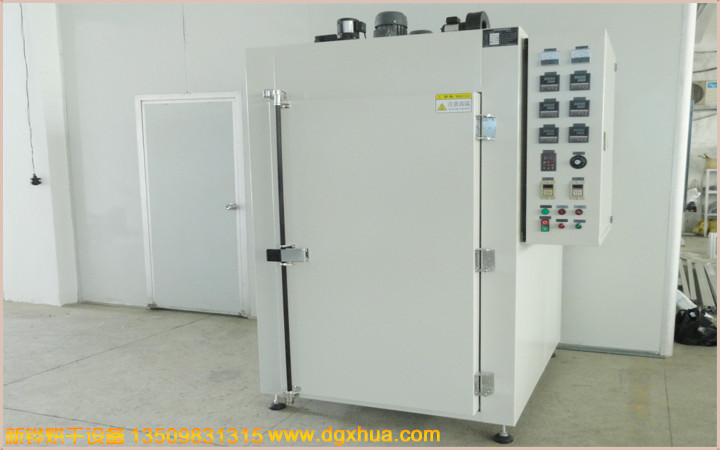

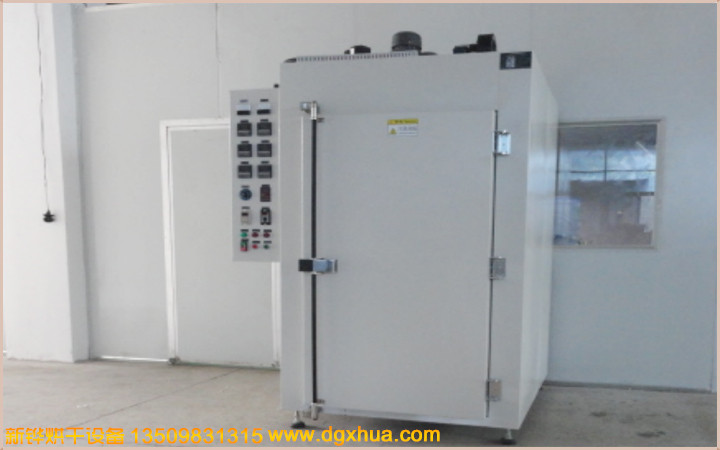

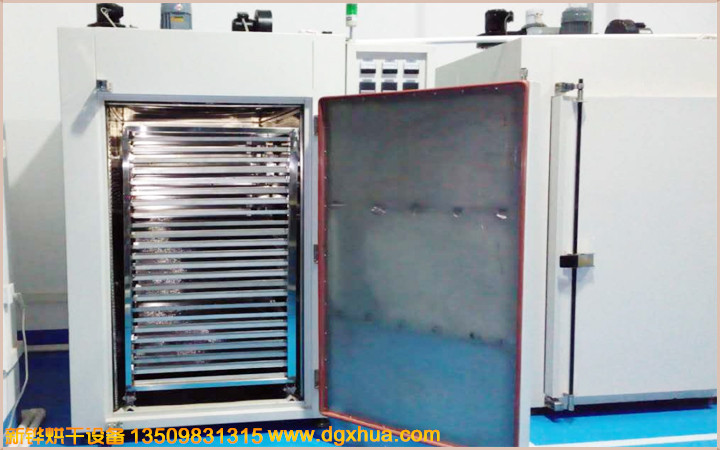

Single door silicone oven
