Glass dust tunnel furnacef

发布时间：2019-09-17　浏览：3046次

产品编号：

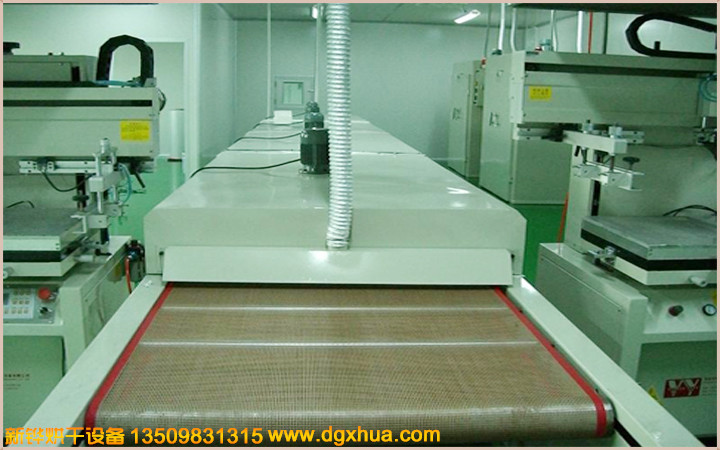

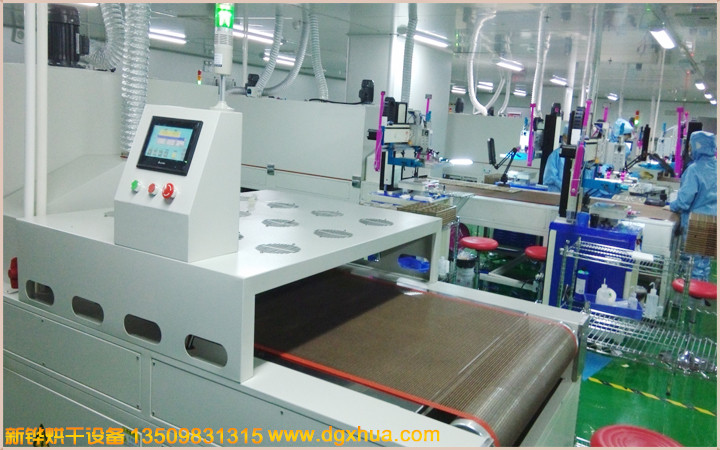

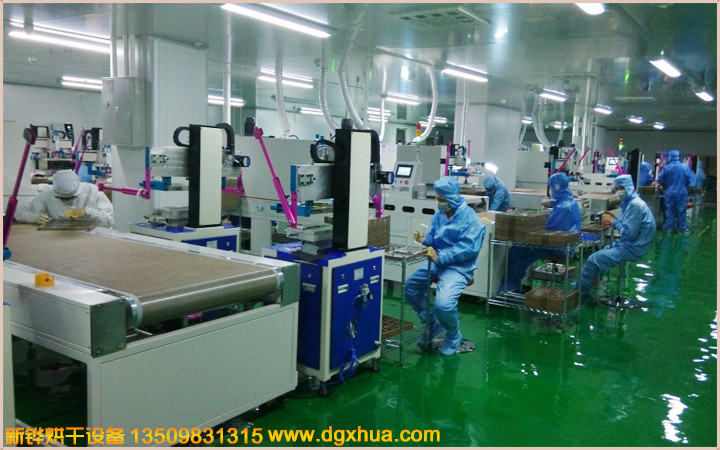

Glass dust tunnel furnacef

适用范围：

Screen printing pre-baking of silver paddle, main curing, OC pre-baking, glass cover, Film, membrane switch, light guide plate, etc.

Glass dust-free tunnel furnace specification

model	XHSOL-100-2IR	XHSOL-100-4IR	XHSOL-120-4IR
Inner dimension LWH(mm)	2400100050	8000105050	10000125050
External dimensionsLWH(mm)	360010501650	1000010501650	1250014501650
Feed inlet height(mm)	0-50	Conveying height(mm)	850±50
Feed section length(mm)	500	800	1000
Heating section length(mm)	2*1200	4*2000	4*2500
Length of discharge section(mm)	200	400	500
Length of discharge section(mm)	500	800	1000
Conveying width(mm)	1000	1000	1200
Delivery method	Teflon mesh belt, Teflon belt
temperature range	RT-200℃ (250℃)	Evenness	±2.5%(No-load test）
Heating time	30min	35min	40min
Box material	Inner box: SUS304#T1.5mm mirror stainless steel Outer box: SS41#T1.5mm steel plate after anti-rust treatment, high-temperature baking powder
Air supply method	Single-sided horizontal air supply/vertical air supply
heating method	SUS304# electric heater + hot air circulation, IR + hot air circulation
Cleanliness level	Class100~1000#
protective device	Leakage switch, phase sequence protection, over temperature protection, motor overload protection, control line fuse
electric power	AC380V 18KVA	AC380V 48KVA	AC380V 63KVA
Product Features	1. Adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy. 2. Use two-stage four-way uniform for distributed control heating (when the temperature is constant, one of the electric heating pipes can be turned off arbitrarily, and the heating power is reduced to enter the power-saving mode) 3. The far-infrared electric heating tube is used for power saving, dust-free, and radiation heating from the inside to the outside, so that the product achieves the effect of rapid drying. 4. It adopts high temperature and high efficiency filter and is equipped with differential pressure gauge to show the working condition of filtration.

标准规格型号选配项目产品视频

Glass dust-free tunnel furnace can be customized

Unique performance

Customer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend

Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control table		Japan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controller		Japan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorder		Imported multi-channel paper recorder
Import PARTLOW chart temperature recorder		Imported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 points		IR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inch		Proface
Mitsubishi		Siemens
Industrial computer Ethernet remote monitoring

Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend


Single side air supply type	Double-sided air supply type	Double-sided air supply explosion-proof	Heat radiation rising type

Four-sided radiation type	Thermal radiation type	Hot air radiation type	Hot air radiation type
