箱式UV固化机主要参数
■technical parameter:
Power requirements: three-phase five-wire 380VAC (power frequency AC) 50HZ (Hz)
Machine power: about 17KW (kW)
Dimensions: 2500L (length) × 800W (width) × 1740H (height) mm
Conveying speed: 0.5-5 m/min (m/min)
Conveying width: 600mm (mm)
Import height: 50-140mm
Exit height: 50-140mm
Imported material area: 700mm
Export material area: 700mm
Shading area: into 250mm
Shading area: into 250mm
Height from the ground: the height of the mesh belt is 750mm
Mesh belt material: UV special Teflon mesh belt
Cooling method: forced air cooling, with flat coated cold mirror
Light source type: high pressure Hg mercury lamp
Light line power: 100w/cm
Light source configuration: 2, 8KW high pressure mercury lamp.
Light source life: according to the accelerated equivalent test, the average is greater than 800 (h) hours, the light decay is not less than 80%
Main peak wavelength: 365nm (nanometer)
Power regulation: 75% 100% full power

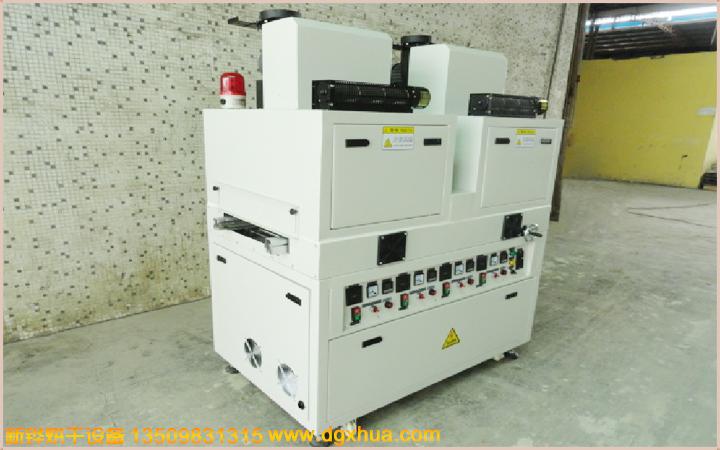

Typical features: two sets of UV light source configuration, strong optional
Typical application: adapt to non-explosion-proof environment
