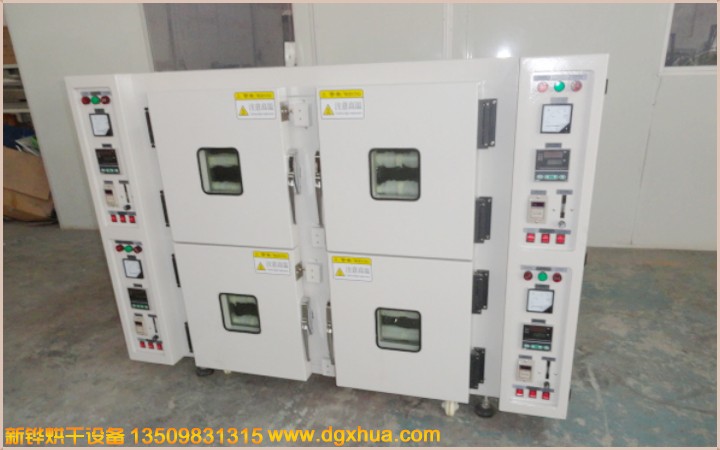

Four-door four-control oven

Four-door four-control oven four-door four-control oven

Four-door four-control oven

Model XHMO-3D XHMO-4D

Inner size W*D*H(mm) 600*500*900 600*500*450

Outer size W*D*H(mm) 960*720*1580 1560*720*1000

Temperature range RT-200°C

Uniformity ±1.5% (no load test)

Heating time 15min 20min

Shelf 4 layers, adjustable shelf

Box material

Inner box: SUS430# (SUS304#) mirror stainless steel

Outer box: SS41# steel plate after anti-rust treatment, high-temperature powder baking powder

Air supply mode

Protection devices All electrical accessories such as leakage switch, phase sequence protection, over temperature protection, motor over current protection, control line fuse, etc. are all in accordance with national standards.

Electricity AC380V 9KVA AC380V 16KVA

Product Features

1. Adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy

2. Adopt automatic constant temperature, automatic timing, automatic shutdown after the arrival of baking time and alarm

3. The stainless steel electric heating tube saves electricity and is dust-free, so that the product can achieve the effect of rapid drying.

4. Design the oven air duct for product requirements to ensure the best temperature uniformity.

Application field: dot matrix, digital tube, LED light-emitting diode, patch, fluorescent powder, etc.

Other options Programmable multi-stage temperature controller, temperature recorder
