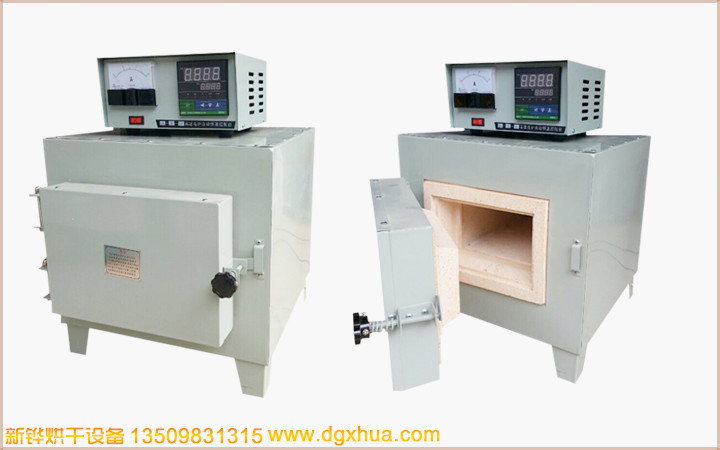

High temperature oven specification reference
Model XHMOH-1 XHMOH-2 XHMOH-5
Inner dimension W*D*H(mm) 450*450*450 600*600*600 1000*600*1000
Outer size W*D*H(mm) 1150*850*950 1200*1350*1360 1950*1200*1950
Temperature range RT-600°C (800°C)
Uniformity ±2% (no load test)
Heating time 45min 50min 50min
Shelf 4 6 grill
Box material
Inner box: (SUS304#) mirror stainless steel;
Outer box: SS41# steel plate after anti-rust treatment, high-temperature powder baking powder
Air supply mode
Protection device Leakage switch, phase sequence protection, over temperature protection, motor over current protection, control line fuse, etc.
Power AC380V 9KVA AC380V 12KVA AC380V 36KVA
Product Features
1. Adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy.
2. Adopt automatic constant temperature, automatic timing, automatic shutdown after the arrival of baking time and alarm
3. Insulation structure: It adopts full fiber lining to save energy. 4. Heating method: SUS316 stainless steel electric heating tube, easy to repair and replace.
Other options Programmable multi-stage temperature controller, temperature recorder, heat exchanger recovery unit
High temperature oven specification
