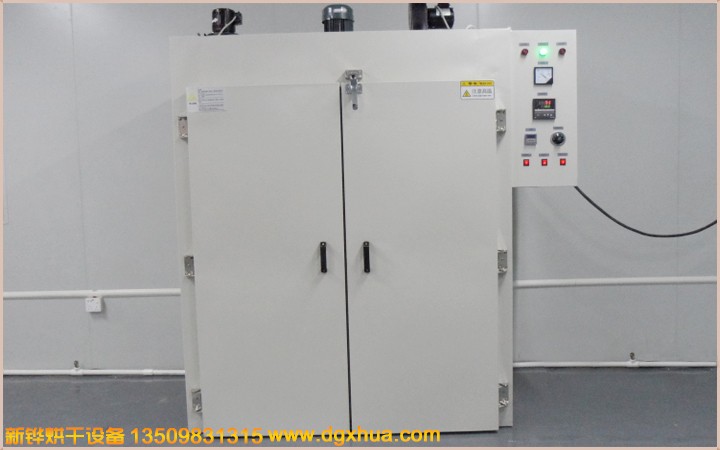

Screen printing oven specifications reference:
Model XHMO-8 XHMO-8WS XHMO-9
Inner size W*D*H(mm) 1360*1050*1280 840*710*1500 (two boxes left and right) 1200*850*1600
Outer size W*D*H(mm) 1980*1300*2300 2700*950*2200 1750*960*2320
Temperature range RT-200°C
Uniformity ±2% (no load test)
Heating time 35min 35min 35min
Shelf drying rack
Box material
Inner box: SUS430# (SUS304#) mirror stainless steel;
Outer box: SS41# steel plate after high temperature powder baking powder after anti-rust treatment;
Air supply mode horizontal/vertical air supply
Protection device Leakage switch, phase sequence protection, over temperature protection, motor over current protection, control line fuse
Electricity AC380V 16KVA AC380V 18KVA AC380V 20KVA
Product Features
1. Adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy. 2. Adopt automatic constant temperature, automatic timing, automatic shutdown after the arrival of baking time and report
3. The stainless steel electric heating tube saves electricity and is dust-free, so that the product can achieve the effect of rapid drying.
4. Design the oven air duct for product requirements to ensure the best temperature uniformity.
Other options Programmable multi-stage temperature controller, temperature recorder
Screen printing oven size can be customized
