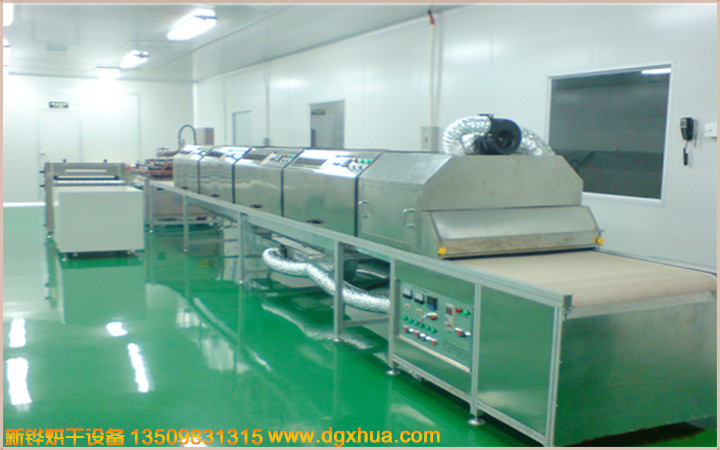

Film tunnel furnace specification
Model XHSOL-100-2IR XHSOL-100-4IR XHSOL-120-4IR
Inner dimension L*W*H(mm) 2400*1000*50 8000*1050*50 10000*1250*50
Outer size L*W*H(mm) 3600*1050*1650 10000*1050*1650 12500*1450*1650
Feed port height (mm) 0-50 conveying height (mm) 850±50
Feed section length (mm) 500 800 1000
Heating section length (mm) 2*1200 4*2000 4*2500
Cooling section length (mm) 200 400 500
Discharge section length (mm) 500 800 1000
Conveying width (mm) 1000 1000 1200
Conveying method Teflon mesh belt, Teflon belt
Temperature range RT-200°C (250°C) Uniformity ±2.5% (no-load test)
Heating time 30min 35min 40min
Box material
Inner box: SUS304#T1.5mm mirror stainless steel
Outer box: SS41#T1.5mm steel plate after anti-rust treatment, high-temperature baking powder
Air supply mode Single side horizontal air supply / vertical air supply
Heating method SUS304# electric heater + hot air circulation, IR + hot air circulation
Cleanliness Class100~1000#
Protection device Leakage switch, phase sequence protection, over temperature protection, motor overload protection, control line fuse
Electricity AC380V 18KVA AC380V 48KVA AC380V 63KVA
Product Features
It adopts intelligent temperature controller, PID automatic calculation, LED display, and SSR solid state relay output control heating, high temperature control precision.
It adopts two sections and four roads to uniformly control the heating of the distribution (in the constant temperature state, one of the electric heating pipes can be arbitrarily turned off, and the heating power is reduced to enter the power saving mode)
The far-infrared electric heating tube is used for power saving, dust-free, and radiation heating from the inside to the outside, so that the product achieves the effect of rapid drying. The high temperature and high efficiency filter is equipped with a differential pressure gauge to show the filtration working condition.

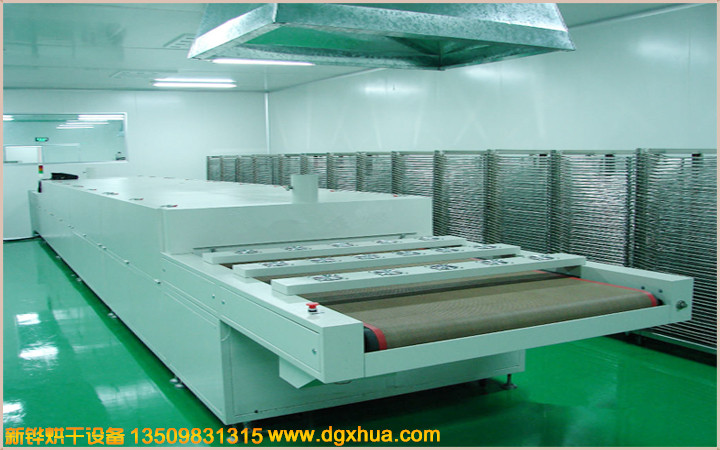

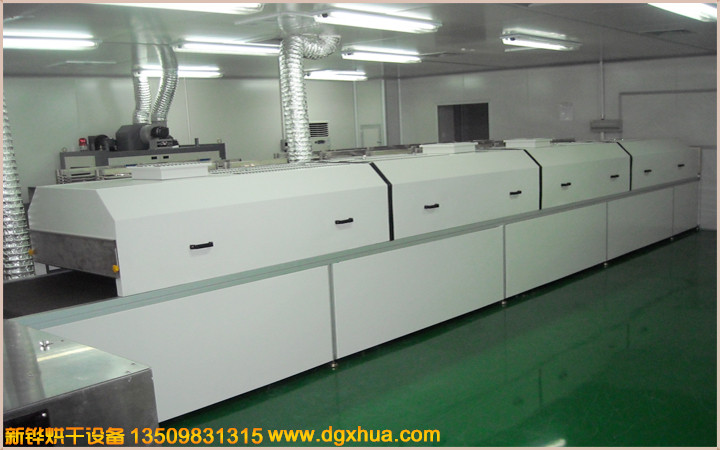

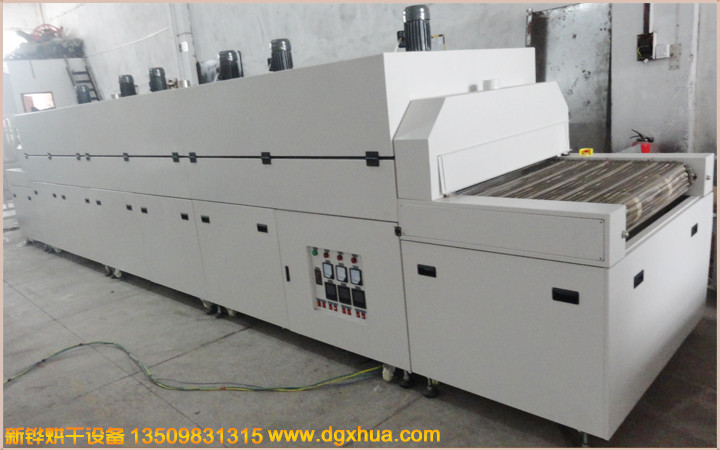

Film tunnel furnace customized according to customer requirements
